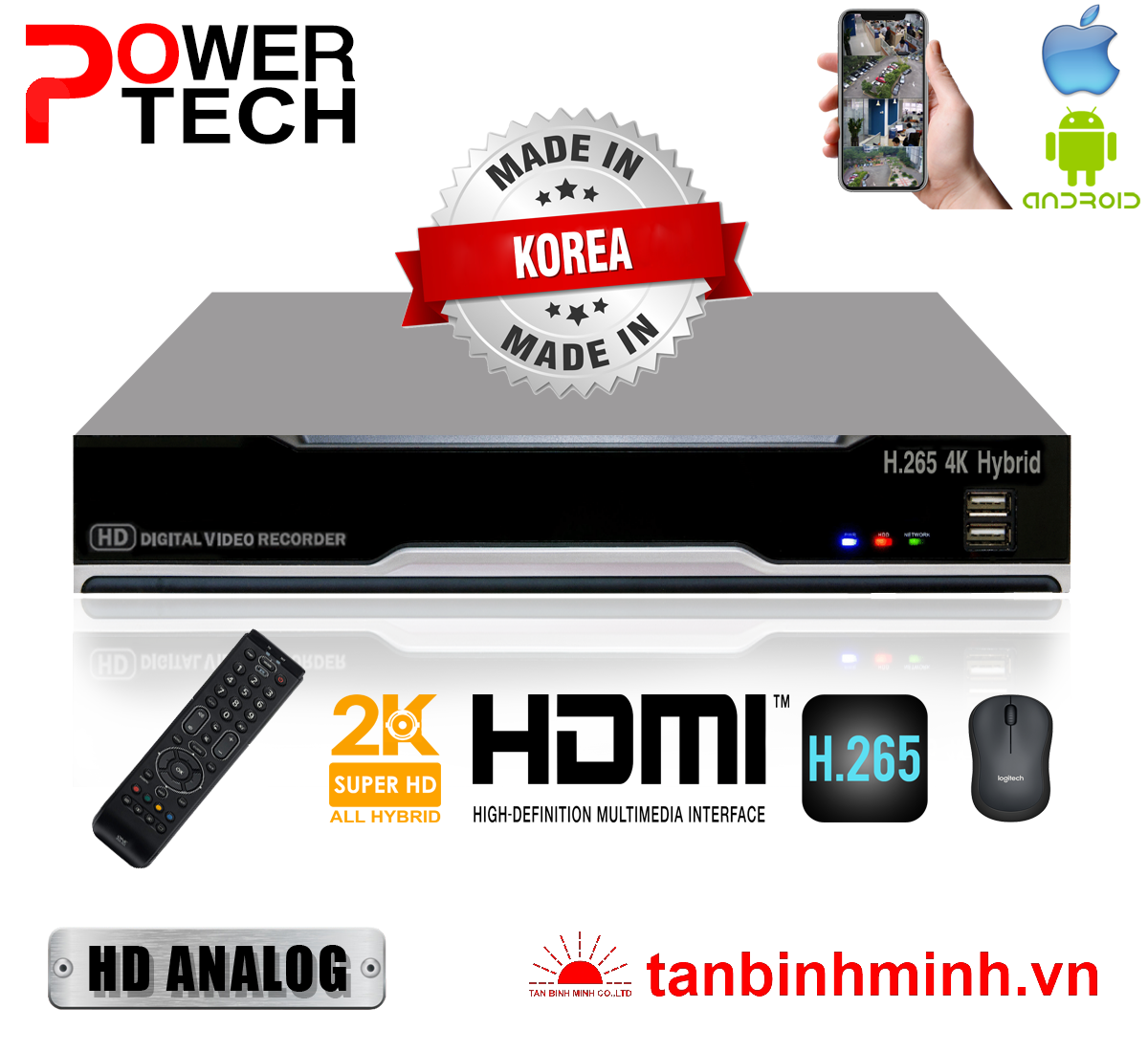

Model | a-Standard 265 Series | ||||
---|---|---|---|---|---|
x | a-Standard 08M 265 |
x | |||
Video | Camera input | x | 8 BNC | x | |
Individual HD/Analog selectable |
Analog, TVI, AHD, CVI, IP | ||||
Available source |
x | TVI/AHD/CVI 720p25,30/1080p25,30/ 3MP@18 ~ 30/4MP@12~ 30/5MP@20/8MP@15 Composite/960H/Mixed |
|||
IP Camera | Spec | ONVIF 1812, RTSP, H.264, H.265, dual stream use gigabit ethernet hub |
|||
Num | x | 8 | x | ||
Resolution | x | ~ 4K@30 | |||
Restriction | Cannot setup Private ZONE Cannot support Timestamp |
||||
Output | x | 1 HDMI (Main Display or Programmable HD Spot, ~UHD@60) 1 VGA (Main Display or Programmable HD Spot, ~1080p60) 1 Composite (Programmable SPOT) |
|||
Audio | Audio input | x | 8 RCA | x | |
Output | 1 RCA | ||||
Sensor In | x | 8 (NC, NO selectable) | x | ||
Alarm out | 1 relay | ||||
Operating System | Embedded Linux OS | ||||
Display | Speed | Real Time | |||
Resolution (Pixel) |
1280X1024, 1280X720, 1920X1080, 4M, UHD | ||||
Split screen | x | 1,4,6,8,9 | x | ||
Main Recording | CODEC | H.265 | |||
Resolution (Pixel) |
8MP : 8MP, 1080p 5MP : 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960x540 960H, Composite : 960H, D1 |
||||
Picture quality | 4 steps (Super, High, Medium, Low) | ||||
Speed | x | 120fps @ 4MP | x | ||
Dual Recording | CODEC | H.265 | |||
Resolution (Pixel) |
X | 640x352 | x | ||
Playback | Display | x | 1,4,6,8,9 | x | |
Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
Speed | x | 120fps | x | ||
Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16, x32, x64, x1/2 , x1/4], Frame to frame, Pause | ||||
Network (Individual setting of resolution, frame rates and picture quality) |
Megabit Ethernet | Gigabit Ethernet | |||
High Resolution (Pixel) |
same as Main Recording | ||||
Low Resolution (Pixel) |
720, 1080p, 3MP, 4MP, 5MP, 8MP : 480x256 960H, Composite : CIF |
||||
Speed | x | 70fps @ 1080p | x | ||
Protocol | TCP/IP, HTTP, DHCP | ||||
Application | Windows 7 / 8 / 10 (PC Client system& IE)/MAC | ||||
Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||||
Smart phone App |
Android, iPhone for live and search | ||||
Backup | Interface | USB 2.0 X 2 | |||
Backup device | External HDD and CD/DVD-RW, Network, Thumb Drive | ||||
The number of HDD | 1 SATA (No capacity limit ; 8TB or more) |
||||
Function | · Full GUI with alpha blending | ||||
· Individual setting of resolution, frame rates and picture quality | |||||
· Instant Replay | |||||
· Digital Zoom | |||||
· Mouse Control | |||||
· Weekly scheduler with holiday by 10 minutes setting | |||||
· Covert, Disable and Private function of cameras | |||||
· Motion Detection with 576 area setting | |||||
· Relay alarm output | |||||
· PTZ control by RS-485 | |||||
· Daylight Saving Time and Network Time Setting | |||||
· Multi User Authority up to 8 Users | |||||
· Deinterlacer upon live and playback | |||||
· 22 languages with full graphic | |||||
· Individual Network port setting | |||||
· Auto Deletion | |||||
· Import and Export the configuration | |||||
· Interactive setup via network | |||||
· POS Interface | |||||
· No Mirroring | x | ||||
· Dual CODEC engine for independent video transmission | |||||
Others | Power Consumption |
24W | x | ||
Operating Temperature | 5~40°C(41~104°F) | ||||
Relative Humidity |
Maximum 80% non-condensing | ||||
Dimension | 300(W)×210(D)×48(H) mm | x |
