Model |

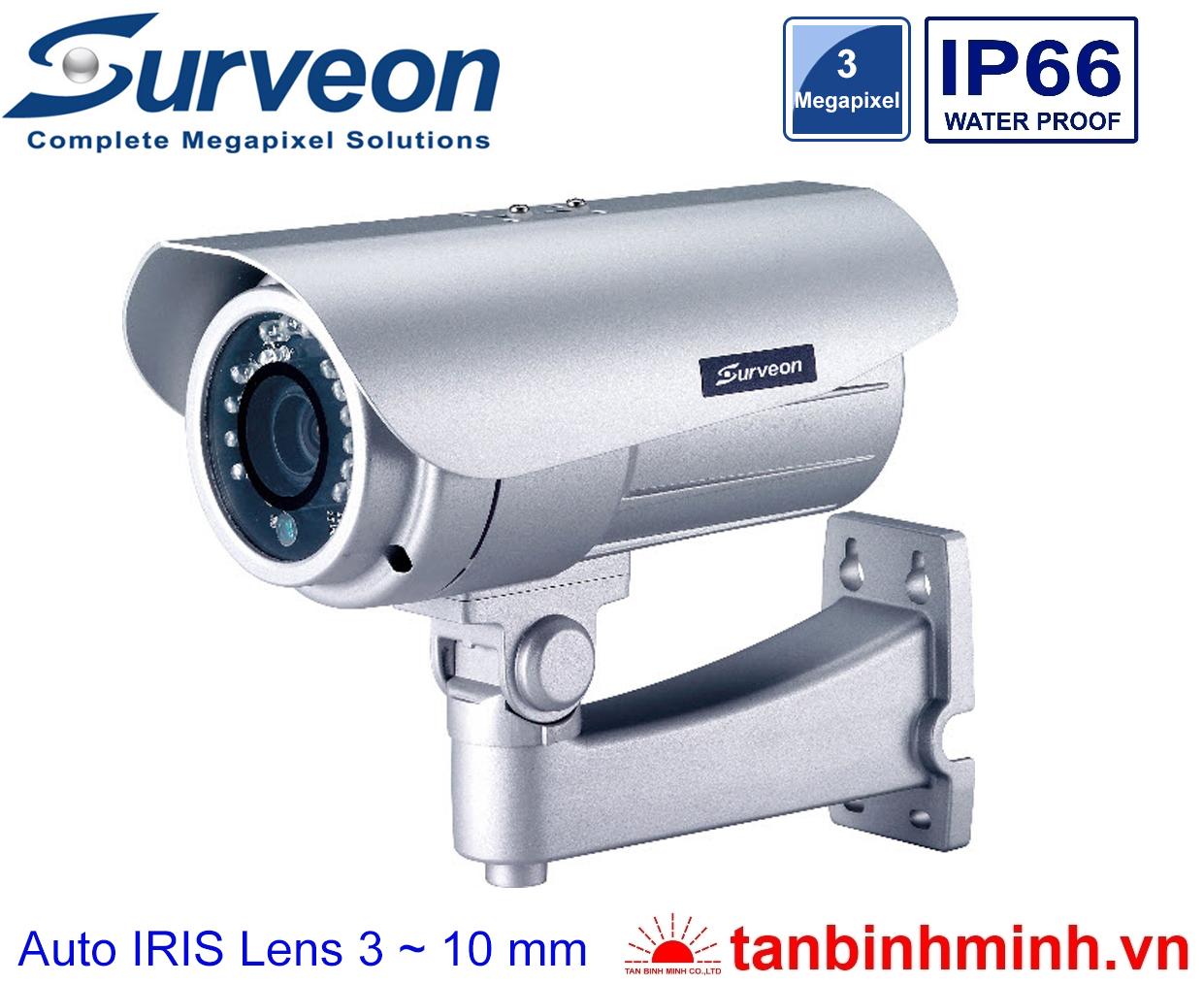

CAM3365 |
Image Sensor |
1/2.8" 3 megapixel SONY low light CMOS |
Lens |
3 - 10 mm motor lens, F1.3 |
SNR |
48dB |
WDR |
Yes |
Day/Night ICR |
Yes |
IR LED |
Yes (20M) |
Min illumination |
0 Lux (IR LEDs on) |
Iris Control |
DC drive |
Shutter Time |
1/7.5 ~ 1/100,000 s |
Viewing Angle |
Diagonal: 123.1°~ 48.3° |
Camera Angle |
N/A |
Pan/Tilt/Zoom |
N/A |
Video compression |
H.264/MPEG-4/MJPEG |
Resolution |
Up to 2048 x 1536 |
Frame Rate |
20 fps at QXGA (2048 x 1536) |
Video Stream |
Dual stream at H.264, MPEG-4, and MJPEG simultaneously |
Bit Rate |
64K ~ 10Mbps, VBR, CBR, controller frame rate and quality |
Video Control |
AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), BLC (Back Light Compensation), image adjustment |
Surveon Video Intelligent |
Motion detection |
Video Jack |
N/A |
Built-in MIC |
N/A |
Audio compression |
32KHz, ADPCM |
Audio Input |
3.5mm phone jack (optional) |
Audio Output |
3.5mm phone jack (optional) |
Alarm In |
2, terminal block (optional) |
Alarm Out |
1, terminal block (optional) |
Video Buffer |
5 second pre-alarm, 30 second post-alarm |
Event Action |
Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO |
Supported Protocols |
IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP, ONVIF |
Ethernet |
10/100 Base-T / RJ45 |
Local Storage |
microSD/SDHC x 1 (Class 4/Class 6 only) |
RS-485 |
1 (2 pin on terminal block) (optional) |
USB |
N/A |
SDK |
Surveon SDK 2.0 |
OS |
Microsoft Windows XP/Vista/7 |
Browser |
Microsoft IE 6.0 or above |
Software |
Surveon VMS 2.4.1 |
Temperature |
Operation:-25°C~ 50°C (-13°~122°F) |
Humidity |
5 to 90% |
Power |
12VDC 1.5A ; PoE (IEEE 802.3af ) with Class 3 |
Power Consumption |
Max. 8W (w/o Heater ) |
Dimension (WxHxD) |
105mm x 218.8mm x 191.41mm (3.44” x 7.18” x 6.28”) |
Weight |
Net:1,400g (3.09lb.) |
Certification |
LVD, FCC, CE, GOST, KCC, IP66 |
