CHI TIẾT SẢN PHẨM

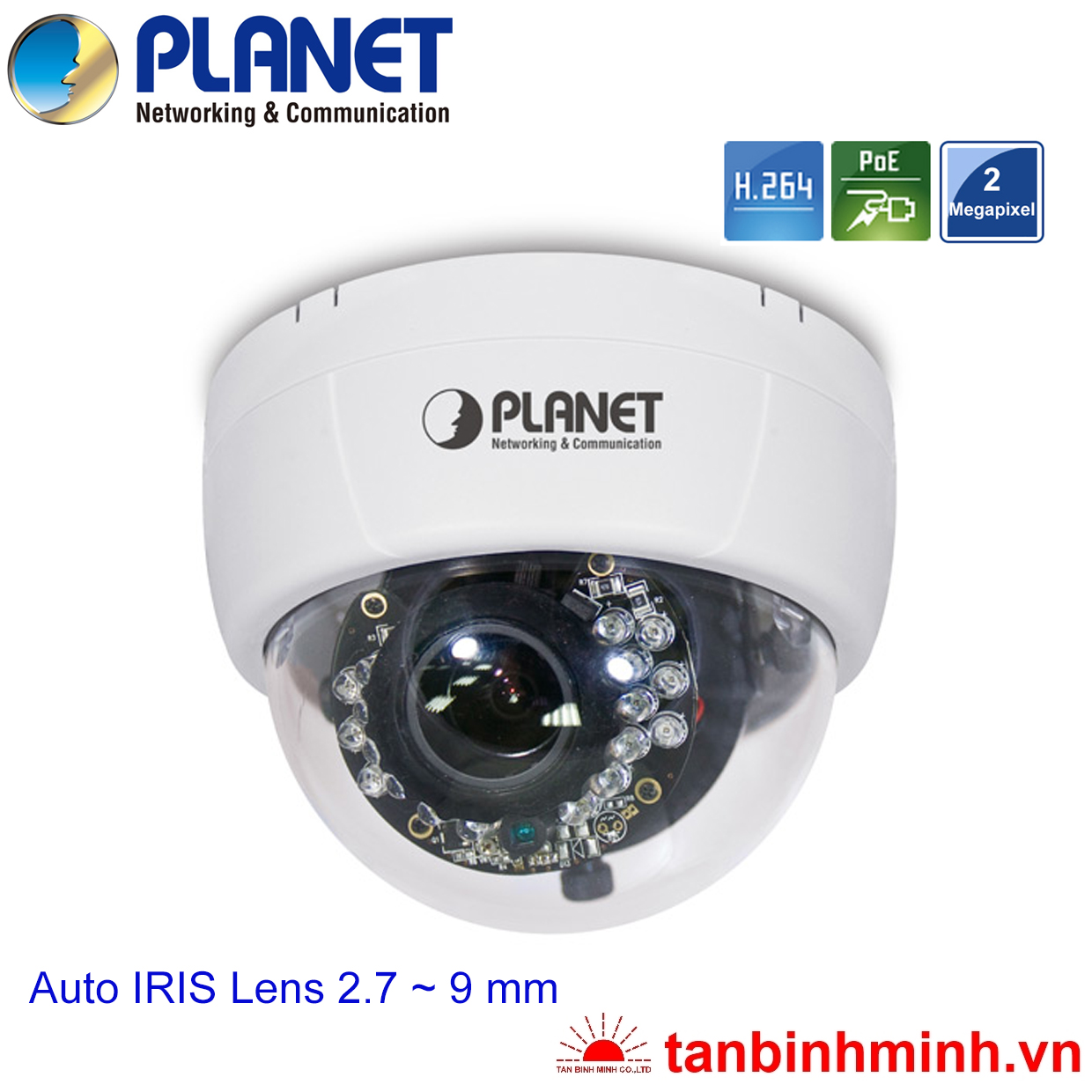

Camera IP Planet ICA-HM132

Camera IP Dome

  • MS : ICA-HM132
  • Bảo hành : 12 Tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : Planet
  • Xuất xứ : Taiwan
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

ICA-HM132

Video Specification

Image Sensor

2 Mega-Pixel CMOS image sensor

Lens

2.7 ~ 9mm Vari-Focal lens with auto iris and IR cut filter / F=1.2

Sensitivity

1 Lux

View Angle

H:101~30.4 Degree / V: 75~23 Degree / D: 127.5~38 Degree

IR LED

High light IR LED x 18pcs

IR Wavelength

850 nm

IR Distance

20M

Video Encoder

H.264 / MPEG-4 / M-JPEG

Rate Control

CBR (Constant Bit Rate) / VBR (Variable Bit Rate)

Video Resolution

H.264 UXGA / 720p / SXGA / VGA / QVGA / QCIF
M-JPEG UXGA / 720p / SXGA / VGA / QVGA
MPEG4 QCIF (Only for 3GPP)

Frame Rate

UXGA Up to 15fps
SXGA Up to 22fps
HD-720p / SVGA / VGA / QVGA / QCIF Up to 30fps

Image Control

Brightness, Sharpness, Contrast, AGC, BLC, Night Mode
Text, Time and date overlay

Audio Specification

Audio Codec

G.711 / AMR

Audio I/O

Audio in: External Microphone
Audio out: External Speaker

Audio Streaming

One-Way or Two-Way

Audio Output

RCA

Network and Configuration

Network Interface

1 x RJ-45

Network Standard

IEEE 802.3 / IEEE 802.3u / IEEE 802.3af

Network Protocol

TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS,
DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP

Browser / Software

Microsoft ® Internet Explorer 6.0 or later
PLANET Cam Viewer 3 Lite/Pro

Motion Detection

3 areas definable

Environment Specification

Power Requirement

12V DC, 1A
IEEE 802.3af Power over Ethernet

Dimension (H x Φ)

108 x 132 mm

Weight

564 g (gross weight)

Power Consumption

510mA max (IR LED on)

Operating Temperature

0 ~ 50 Degree C

Operating Humidity

20 ~ 80% (non-condensing)

Emission

CE, FCC
