CHI TIẾT SẢN PHẨM

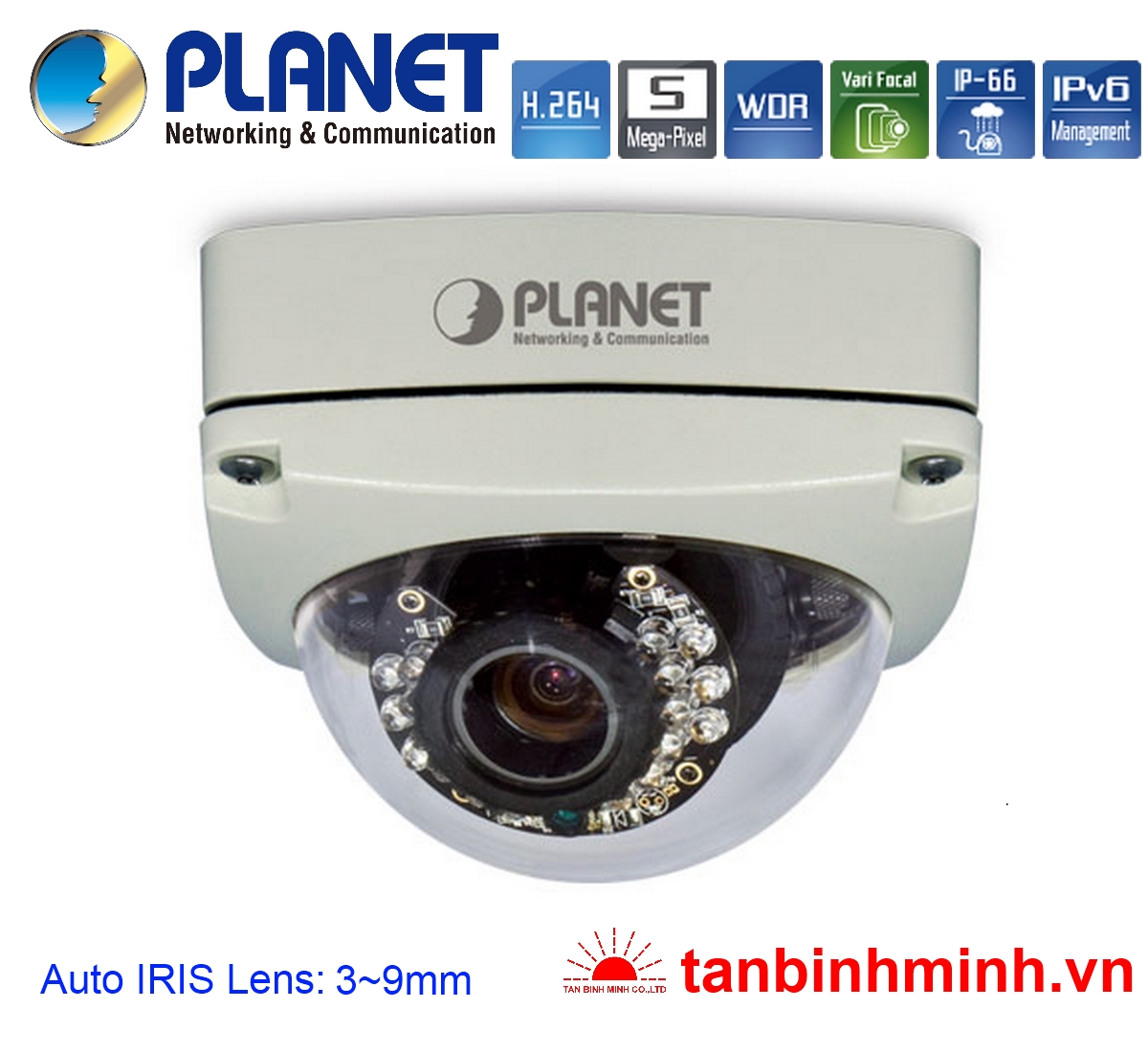

Camera IP Planet ICA-5550V

Camera IP Dome

  • MS : ICA-5550V
  • Bảo hành : 12 Tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : Planet
  • Xuất xứ : Taiwan
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

ICA-5550V

Camera

Image Device

1/3.2" 5 mega-pixel progressive scan CMOS sensor

Lens

Vari-focal 3~9 mm, DC auto-iris
Mechanical IR cut filter

Angle of view
Horizontal: 28.9~93.59 degrees
Vertical: 22.3~71.5 degrees

Min Illuminator

0 lux @ F1.8

IR Illumination LED

IR LED*18, 850nm
Built-in IR illuminators, effective up to 20 meters

Effective Pixels

2592 x 1944 Pixels

Video

Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Profile

H.264: 2592 x 1944 / QXGA / UXGA / 1080p 1280 x 960 / 720p / VGA / QVGA / QCIF
M-JPEG: 2592 x 1944 / QXGA / UXGA / 1080p 1280 x 960 / 720p / VGA / QVGA / QCIF
MPEG-4: VGA / QVGA / QCIF (Only for 3GPP)

Frame Rate

Up to 30fps for Full HD resolution
Up to 15fps for 5 Mega-Pixel resolution

Image Setting

Brightness, Contrast, Hue, Saturation, Sharpness,
AGC, Shutter Time, Sense-Up, WDR, Flip, Mirror, Noise reduction, White Balance, Day & Night adjustable

Streaming

Simultaneous multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)

Audio

Audio Streaming

Two-way audio

Audio Encoder

RTSP:G.711 / G.726
3GPP:AMR

Microphone

Terminal block

Audio Output

Terminal block

Network and Configuration

Network Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Supported Protocols

IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP

Security

Password protection, user access log

Users

10 simultaneous unicast users

System Integration

Application Programming Interface

Open API for software integration
SDK

Alarm Triggers

Intelligent video motion detection and external input
3-zone video motion detection

Alarm Events

File upload via FTP, email and SAMBA
External output activation
Configurable Pre/Post alarm buffering

General

Power Supply

12V DC, 1A
IEEE 802.3af Class 3

Power Consumption

DC 12V Max: 5.64W (IR On); 4.2 (IR Off)
PoE Max: 6.72W (IR on); 5.28W (IR Off)

Housing

IK-10 / IP66 classification with vandal and weather proof

Operating Temperature

-20 ~ 50 degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Dimensions (W x D x H)

126 x 126 x 100 mm

Weight

881 g

Emission

CE, FCC

Connectors

10/100Mbps Ethernet, RJ-45
DC power jack
Factory default reset
Micro SD/SDHC card (Max. 32GB, Class 6)
Composited video out (Max. resolution: D1 720 x 480 pixel)
Terminal block for 1 alarm input, 1 output, external MIC input and audio out
