CHI TIẾT SẢN PHẨM

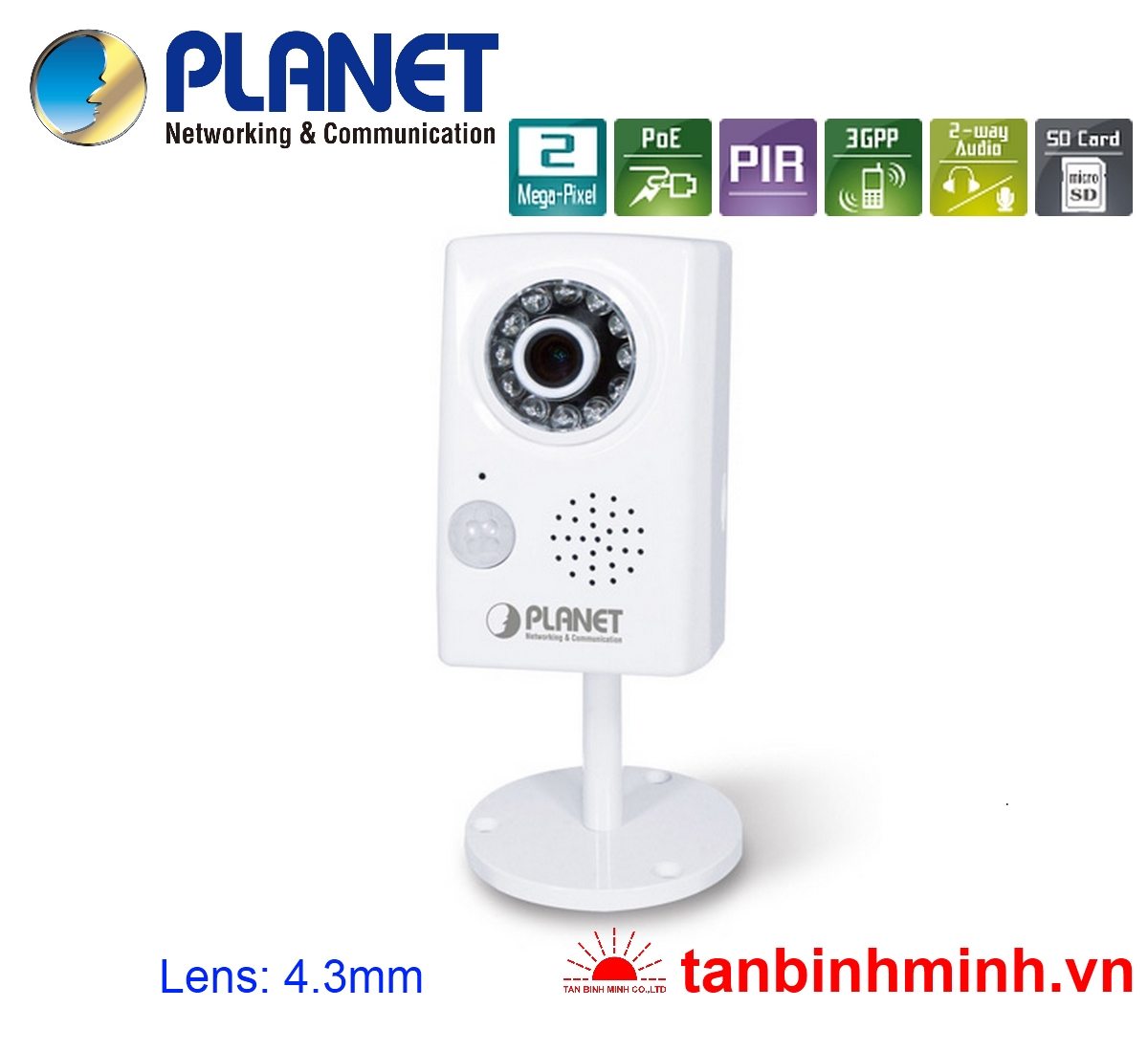

Camera IP Planet ICA-HM101

Camera IP Cube

  • MS : ICA-HM101
  • Bảo hành : 12 tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : Planet
  • Xuất xứ : Taiwan
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

ICA-HM101

Camera

Image Sensor

1/3" 2 Mega-Pixel CMOS image sensor

Lens

4.3 mm, F1.8

View Angle

H: 56 Degree
V: 43 Degree

Effective Pixels

1600 x 1200 (UXGA)

Min Illumination

0.5 lux @ F1.2

Signal to Noise

42 dB

LED

12 x White-light LED

Indication LED

Green LAN LED
Orange
Power / Wireless LED

PIR Sensor

Built-in 6m / 120 Degree Coverage

Motion Detection

10 Area Definable

Video

Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Profile

20 profiles simultaneously

Video Resolution

H.264 UXGA / VGA / QVGA / QQVGA
MPEG4 VGA / QVGA / QQVGA
M-JPEG UXGA / VGA / QVGA / QQVGA

Rate Control

CBR (Constant Bit Rate) / VBR (Variable Bit Rate)

Frame Rate

Mega-Pixel mode up to 15fps for all resolution
VGA mode up to 30fps for VGA / QVGA / QQVGA

Image Setting

AE, AWB
3D Noise Reduction
Digital WDR
Color, Brightness, Sharpness, Contrast, Hue
Mirror / Flip
Privacy Masks
Text, Time and Date Overlay

Streaming

Simultaneous Multi-Profile Streaming
Streaming over UDP, TCP, or HTTP
M-JPEG Streaming over HTTP (Server Push)
Supports 3GPP Mobile Surveillance (MPEG4)
Controllable Frame Rate and Bandwidth
Constant and Variable Bit Rate (MPEG4 / H.264)
ROI

Audio

Audio Codec

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Audio Streaming

One-Way or 2-Way

Audio I/O

Audio in: Internal Microphone and Speaker
Audio out: Line

Network and Configuration

Network Interface

10/100M Auto Negotiation

Network Standard

IEEE 802.3
IEEE 802.3u

Network Protocol

TCP/IP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS
ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Browser / Software

Microsoft ® Internet Explorer 6.0 or later, PLANET Cam Viewer 3 Lite / Pro (CV3L . CV3P)

Users

20 simultaneous unicast users

Connection type

Static IP, DHCP

Management

Web, CV3P, CV3L

System Integration

SDK

Open API for software integration
ONVIF

Alarm Triggers

Intelligent Video Motion Detection
External Input
PIR detector (Human Detect)

Alarm Events

File upload via FTP, Samba, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output

Video Buffer

Pre and post alarm buffering

Environment

Power Requirement

12V DC, 1A
IEEE 802.3af

Dimension (W x D x H)

91 x 58 x 39 x 91mm

Weight

146g

Power Consumption

6W (12VDC)

Operating Temperature

-10 ~ 40 Degree C

Operating Humidity

20 ~ 80% (non-condensing)

Emission

CE, FCC
