CHI TIẾT SẢN PHẨM

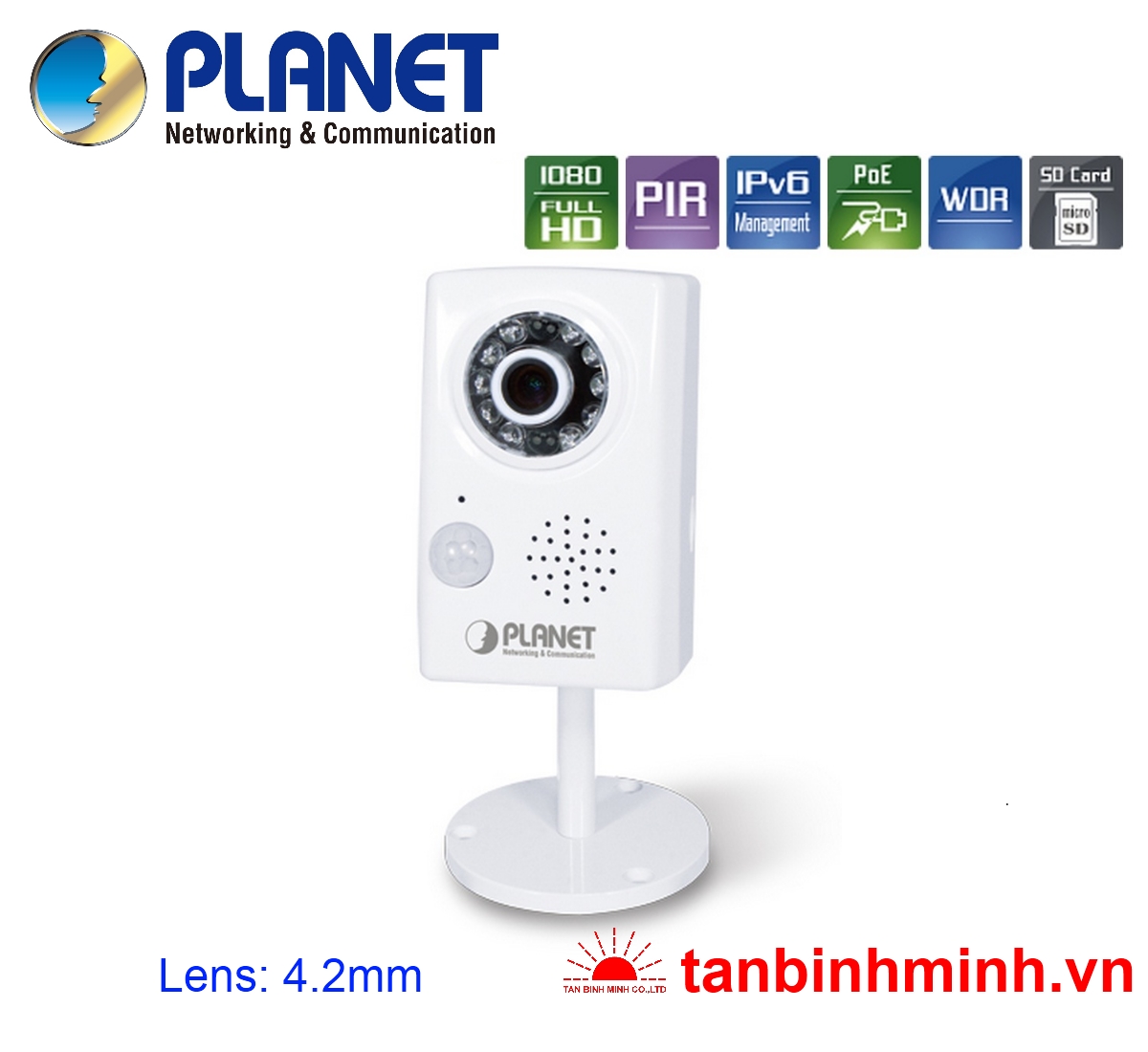

Camera IP Planet ICA-1200

Camera IP Cube

  • MS : ICA-1200
  • Bảo hành : 12 tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : Planet
  • Xuất xứ : Taiwan
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

ICA-1200

Camera

Image device

1/2.9" Sony Exmor Progressive CMOS

Lens

4.2 mm, fixed iris, fixed focus
Angle of view : horizontal: 56 Degree / vertical: 43 Degree

Effective Pixels

1920 x 1080 pixels (16:9)

Min Illumination

0.5 lux @ F1.2

LED

IR LED x 10, 850nm
Built-in IR illuminators, effective up to 5~10 meters

PIR Sensor

Built-in 6m/120 Degree Coverage

Video

Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Resolution

1080P mode
H.264: 1080P / 640 x 360 / 672 x 352 / 320 x 180 / 160 x 90
M-JPEG: 1080P / 640 x 360 / 320 x 180 / 160 x 90
MPEG4: 1080P / 640 x 360 / 320 x 180 / 160 x 90

720P mode
H.264: 1280 x 720 / 640 x 368 / 640 x 360 / 160 x 90
M-JPEG: 1280 x 720 / 640 x 360 / 160 x 90
MPEG-4: 1280 x 720 / 640 x 360 / 160 x 90

Frame Rate

Up to 30fps for all resolutions

Image Setting

AE, AWB
3D Noise Reduction
WDR
Color, Brightness, Sharpness, Contrast, Hue
Mirror / Flip
10 Privacy Masks
Text, Time and Date Overlay

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI

Audio

Audio Streaming

2-Way Audio

Audio Compression

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Microphone

Built-in Microphone and Speaker input

Audio Output

Adjustable audio output gain

Network and Configuration

Network Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Network Protocol

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF

Alarm Triggers

Intelligent Video Motion Detection
External Input
PIR detector (Human Detect)
Audio detection

Alarm Events

File upload via FTP, Samba, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output

Video Buffer

Pre and post alarm buffering

Environment

Power Requirement

12V DC, 1A
IEEE 802.3af (Power over Ethernet) Class 3

Power Consumption

6W (12VDC)

Operating Temperature

-10 ~ 40 Degree C

Operating Humidity

20 ~ 80% (non-condensing)

Dimension (W x D x H)

58 x 39 x 91 mm

Weight

146g

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio out
TV out
Micro SD/SDHC card (Max 32GB, Class 6)
Factory default reset
