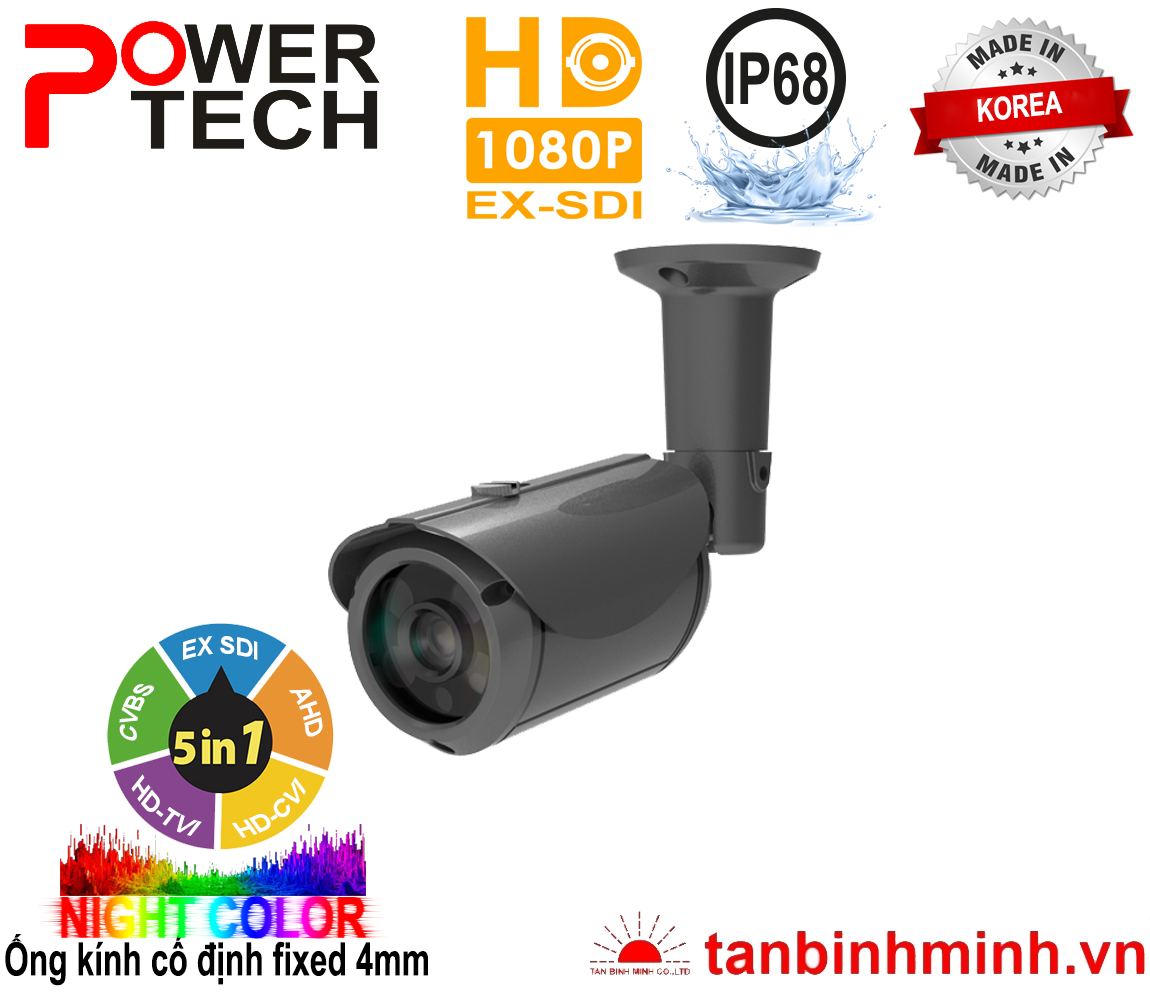

Camera Powertech FULL HD HBI70 S77H4-40

Camera EX-SDI Full HD 1080P

Số lượng mua

SP cùng loại

SP xem nhiều

Thông số kỹ thuật

Tổng quan

Video

Download

Phụ kiện

Specification	S77 (EX-SDI)
Resolution	1080P, 720P
Sensor	1/2.8 inch SONY CMOS (IMX-291)
Total Pixels	1945(H) x 1109(V) = 2.16M
Effective Pixels	1945(H) X 1097(V) = 2.13M
Scanning System	PROGRESSIVE
S/N (Y signal)	More than 52 dB (AGC Off)
Video Output	SMPTE274M (EX-SDI) / (TVI, AHD, CVI, CVBS: 1.0Vp-p (75ohm) : Option)
Min.Illumination	0 Lux at IR On
White Balance	AUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speed	AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER
BRIGHTNESS	ADJUSTABLE (0 ~ 20 STEP)
SENS_UP	OFF / X2 ~ X32
DNR	OFF / LOW / MIDDLE / HIGH
BACKLIGHT	OFF / WDR / BLC / HLC
ACE	OFF / LOW / MIDDLE / HIGH
Day & Night	AUTO (Day <--> Night TIME Change) , COLOR , B/W, EXTERN
Privacy	OFF / ON
Motion	OFF / ON
DNR	OFF / LOW / MIDDLE / HIGH
BACKLIGHT	OFF / WDR / BLC / HLC
FREEZE	OFF / ON
Language	ENG, CHN, CHN(S), JPN, KOR
SHARPNESS	ADJUSTABLE (0 ~ 10 STEP)
DEFOG	OFF / ON
COMM.	RS-485(PELCO-D)
SMART IR	ADJUSTABLE (0 ~ 20 STEP)
Operating Temperature/Humidity	-10'C~+50'C / 30%~80% RH
Storage Temperature/Humidity	-20'C~+60'C / 20%~90% RH
Power	DC12V [ AC24V / DC12V DualPower (option) ]
signal Transmission	The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI 200M / EX-SDI 500M)
Lens	Fixed lens : 4.0mm
