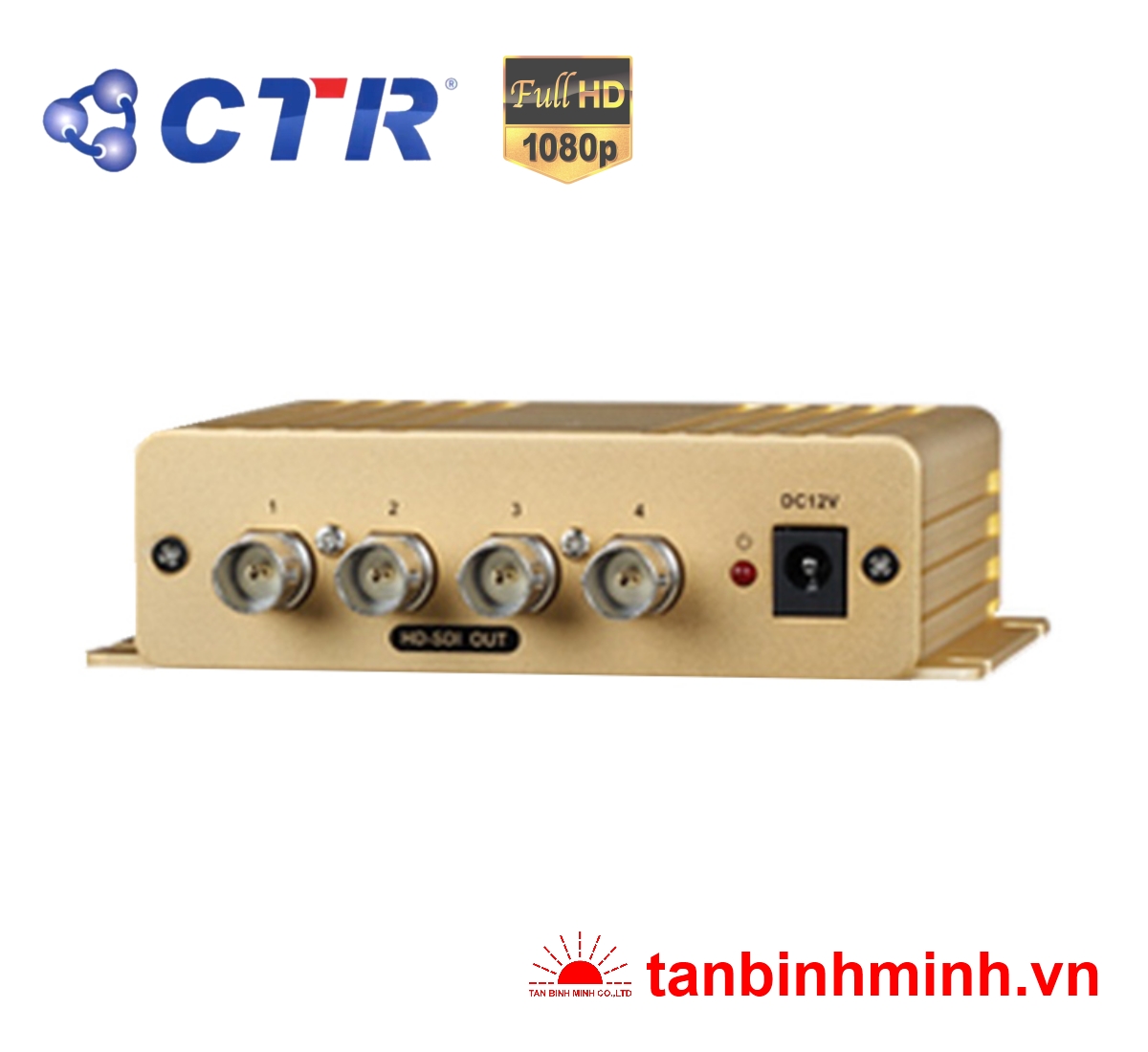

Model |
HSR1440 |
Input Signal |
10bit HD Serial Digital Signal, SMPTE 292M, 1/4ch |
Output Signal |
10bit HD Serial Digital Signal, SMPTE 292M, 1/4ch |
Video Format |
1080p 24 / 25 / 30 / 50 / 60 |
1080i 50 / 60 |
|
720p 24 / 25 / 30 / 50 / 60 |
|
Input Return Loss (BNC) |
> -15 dB, 270Mb-3Gb |
Output Return Loss (BNC) |
> -15 dB, 270Mb-3Gb |
Input Impedance (BNC) |
75 Ohms +/- 1% |
Output Impedance (BNC) |
75 Ohms +/- 1% |
Power Consumption |
Free Voltage 12VDC, 1A |

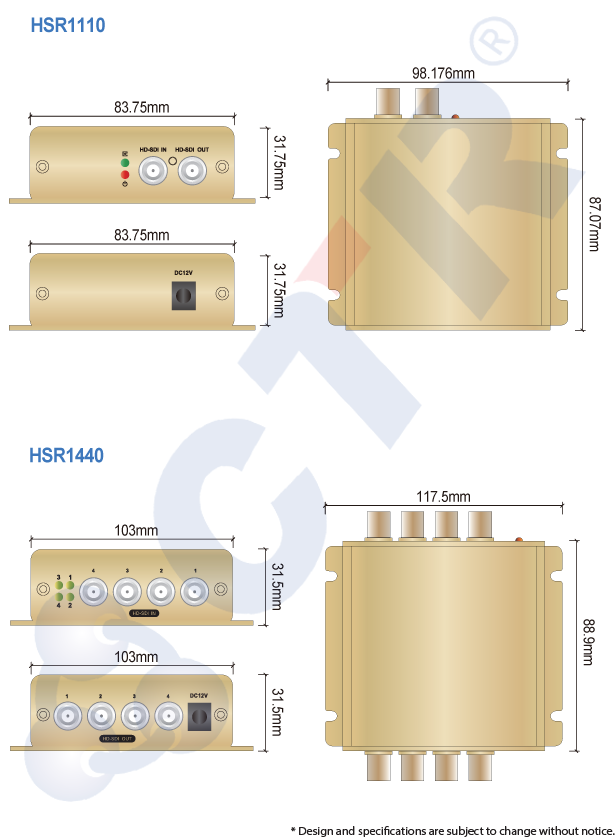

Dimension |
83.75mm x 31.75mm x 87.07mm / 3.35 inch x 1.27 inch x 3.48 inch |
HD-SDI Connector |
BNC Female |
